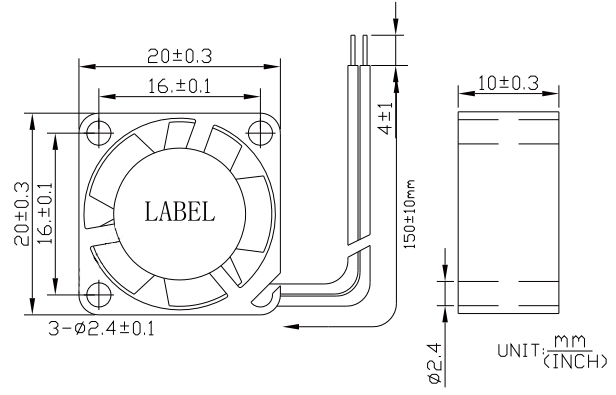

Product Dimensions
Performance Curve
Specifications

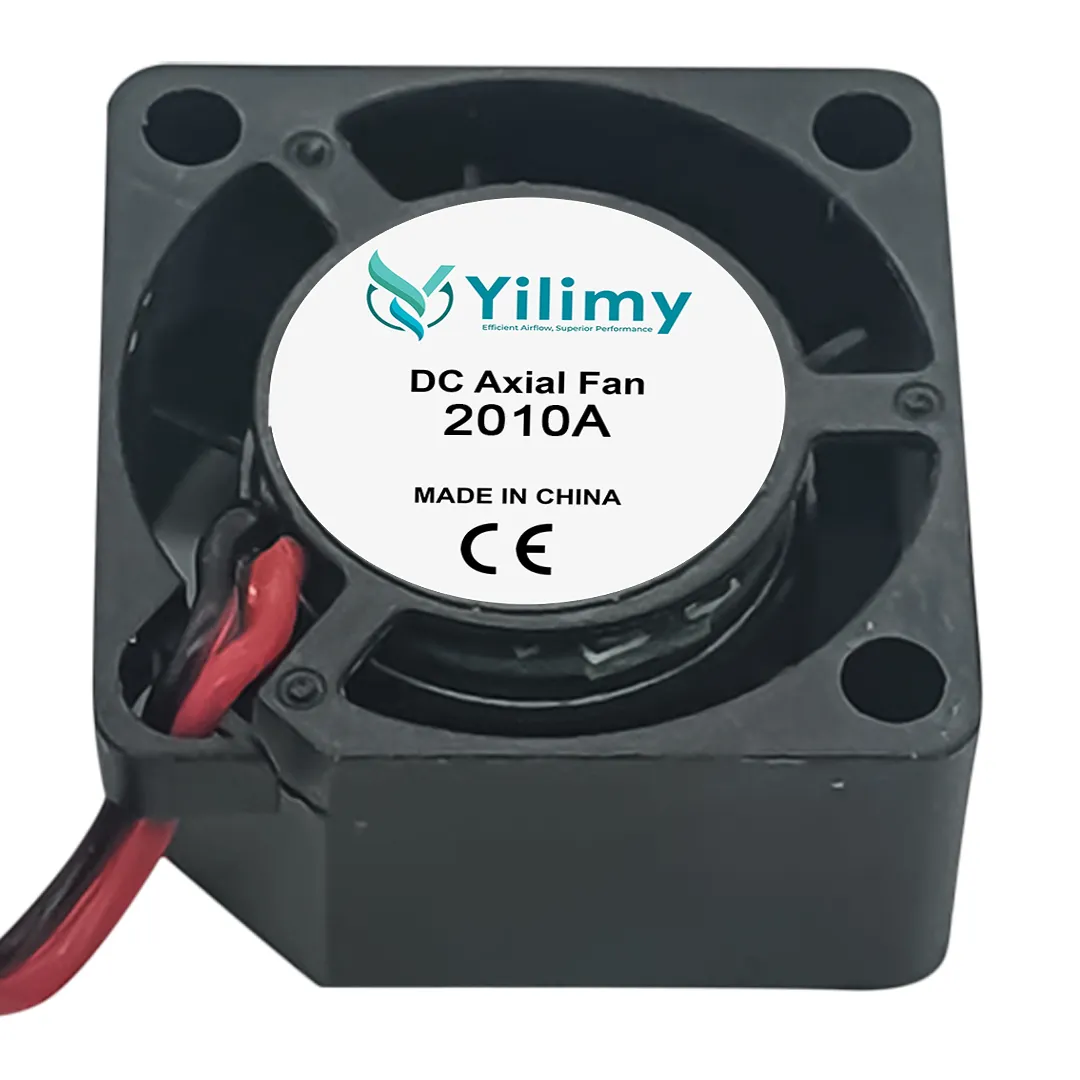

The 2010A DC axial fan (20x20x10mm) offers high airflow and low noise, perfect for cooling electronic devices, servers, and industrial equipment. As a reliable DC Axial Fan supplier, we ensure premium quality, energy efficiency, and customizable options to meet diverse cooling needs, if you are looking for specifications beyond these, we shall be happy to customize for you on the various kinds of fans demand.
| Item No. | Operating Voltage |
Maximum Air Flow |
Maximum Air Pressure |
Speed | Rated Current |
Input Power |
Noise | Available | ||
| (V) | (CMM) | (CFM) | (mmH2O) | (inchH2O) | (rpm) | (A) | (W) | dB(A) | ||
| FF2010M05B-A | 5 | 0.030 | 1.05 | 2.16 | 0.085 | 10,000 | 0.080 | 0.40 | 18.8 | FG RD PWM IP67 EC … |
| FF2010H05B-A | 5 | 0.032 | 1.14 | 2.65 | 0.104 | 12,000 | 0.120 | 0.60 | 21.3 | |
| FF2010U05B-A | 5 | 0.038 | 1.35 | 4.3 | 0.169 | 14,000 | 0.200 | 1.00 | 24.2 | |
| FF2010L12B-A | 12 | 0.030 | 1.05 | 2.16 | 0.085 | 10,000 | 0.030 | 0.36 | 18.8 | |
| FF2010M12B-A | 12 | 0.032 | 1.14 | 2.65 | 0.104 | 12,000 | 0.050 | 0.60 | 21.3 | |
| FF2010H12B-A | 12 | 0.038 | 1.35 | 4.3 | 0.169 | 14,000 | 0.080 | 0.96 | 24.2 | |
