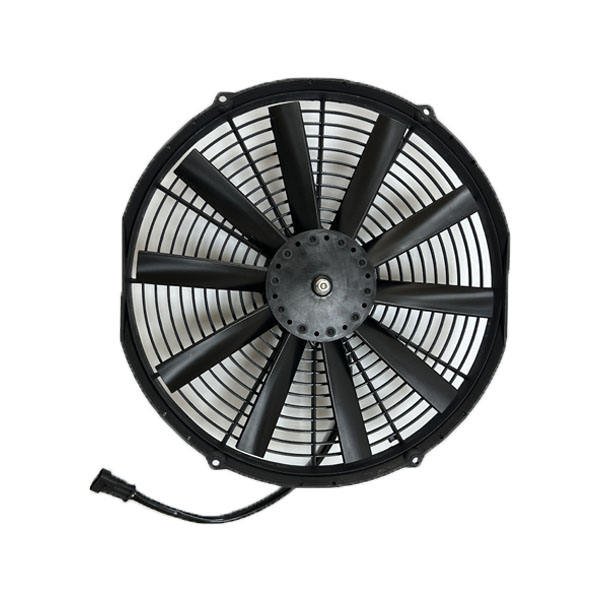

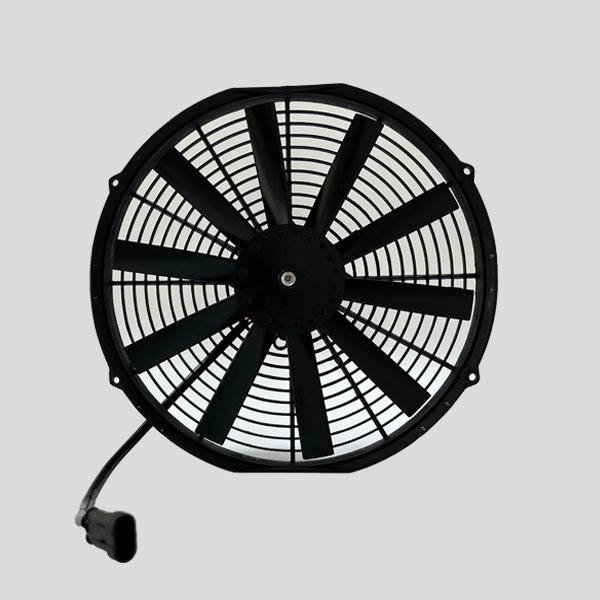

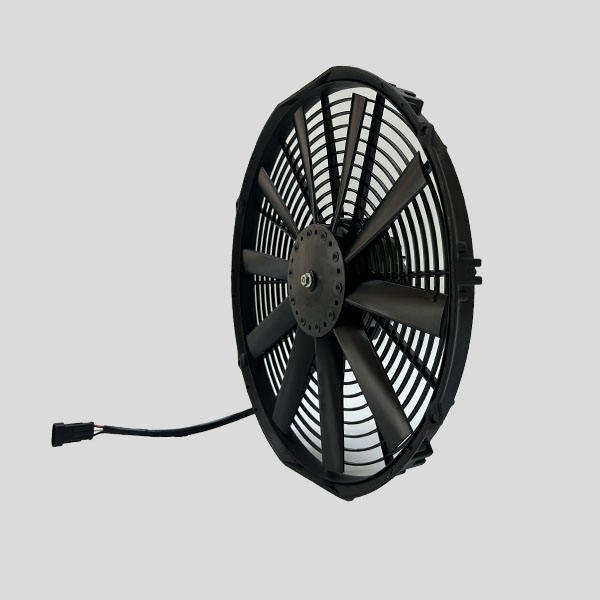

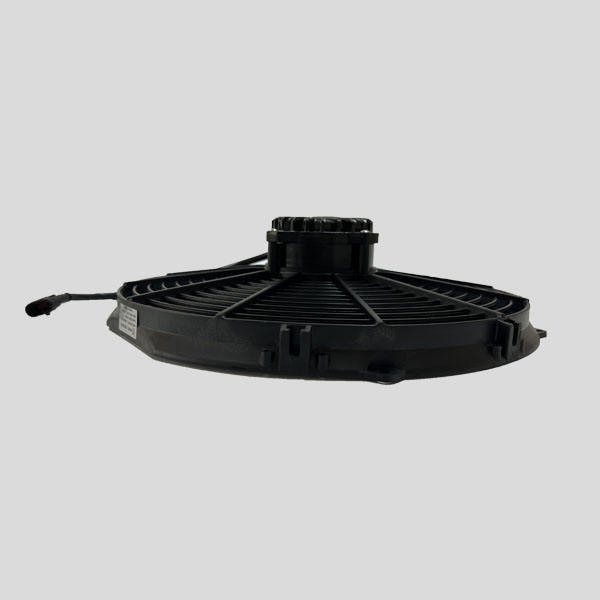

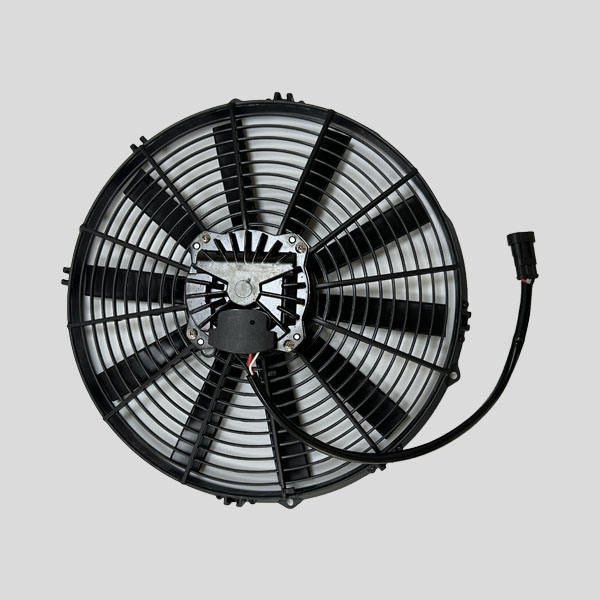

The KBRL2414 14 inch 24V brushless condenser fan is designed for condenser cooling in bus air-conditioning systems. It delivers 3020 m³/h airflow with PWM control and is available in blowing or suction configurations.
Key Features
- 14-inch brushless axial condenser fan
- 24V DC operation
- 3020 m³/h airflow
- PWM speed control
- 50–1000 Hz operating frequency
- Rated service life of 40,000 hours
- Blowing or suction configuration available
- Reference replacement for compatible SPAL-type applications
- 13-month warranty
Model Options
| Model | Tensión | Load Current | Airflow | Control |
|---|---|---|---|---|
| KBRL2414S | 24V DC | ≤10.6 A | 3020 m³/h | PWM |
| KBRL2414B | 24V DC | ≤10.6 A | 3020 m³/h | PWM |
Technical Specifications
- Fan type: Brushless axial condenser fan
- Fan size: 14 inch
- Rated voltage: 24V DC
- Load current: ≤10.6 A
- Airflow: 3020 m³/h
- Control method: PWM / Pulse Width Modulation
- Operating frequency: 50–1000 Hz
- Rated service life: 40,000 hours
- Airflow direction: Blowing or suction
- Color: Black
Applications

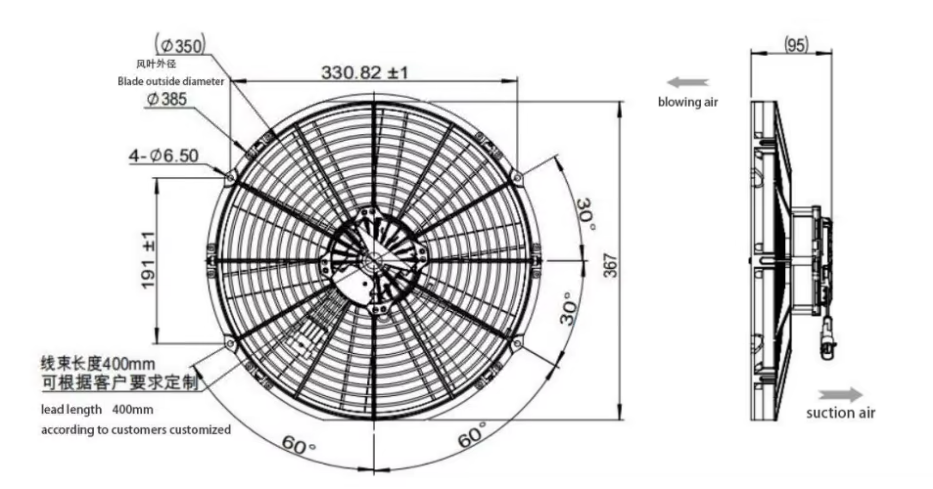

Suitable for condenser cooling and replacement applications in bus air-conditioning systems. Confirm the required model, airflow direction, mounting dimensions and electrical connection before ordering.
Compatibility Notice
This product is an aftermarket SPAL-type replacement reference and is not represented as an original SPAL product.
Request a Quote
Contact us with your required airflow direction, mounting requirements and order quantity to confirm the correct model, current price and delivery schedule.
