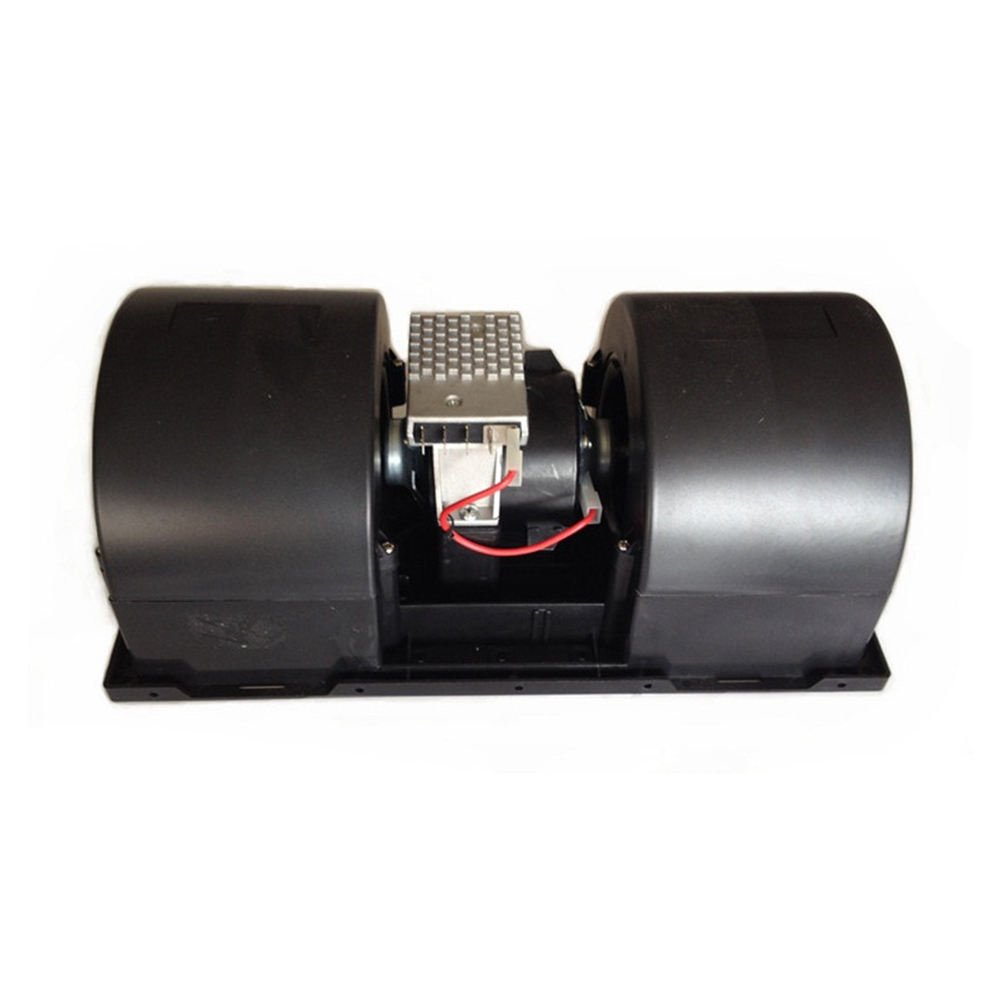

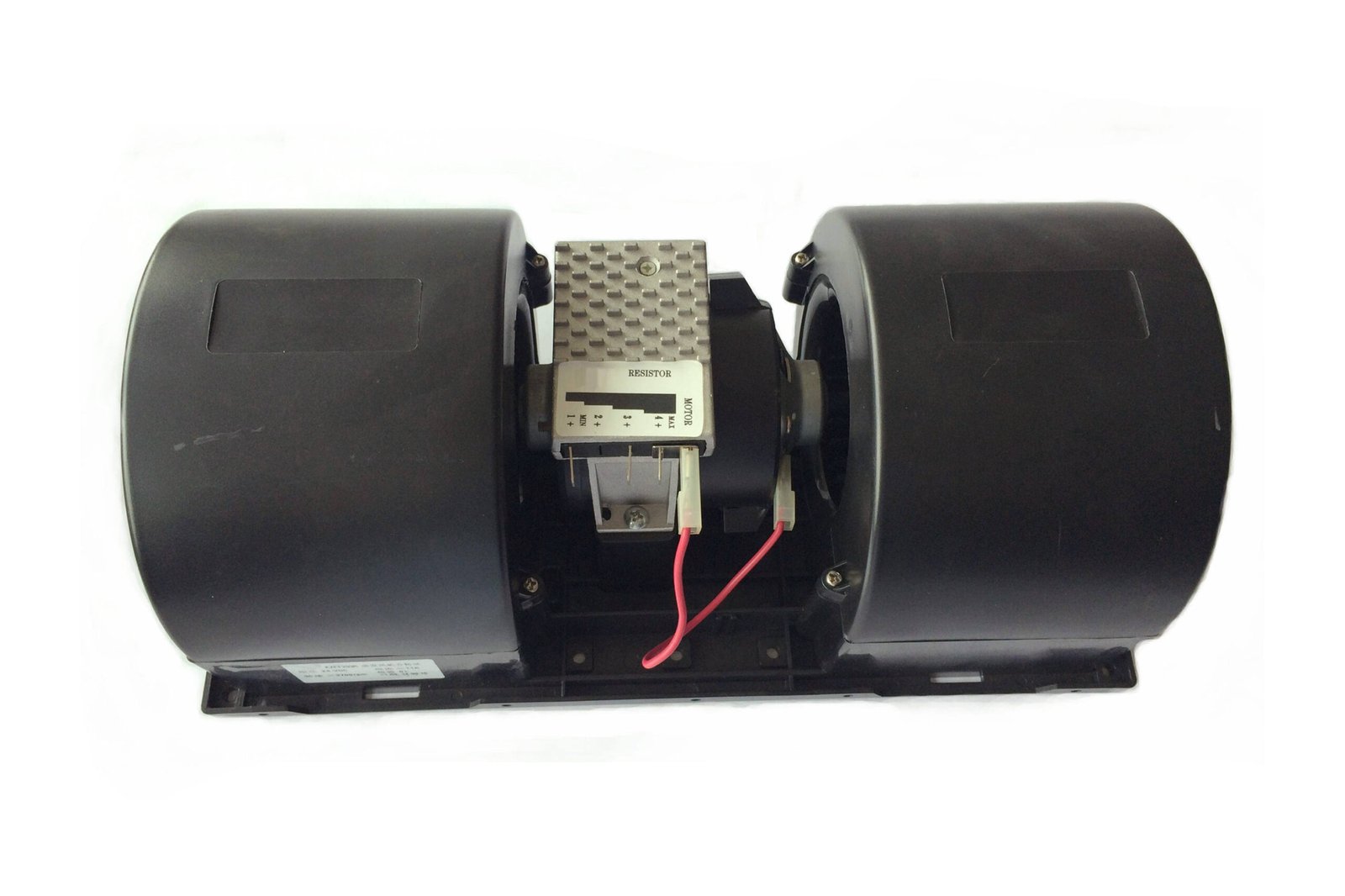

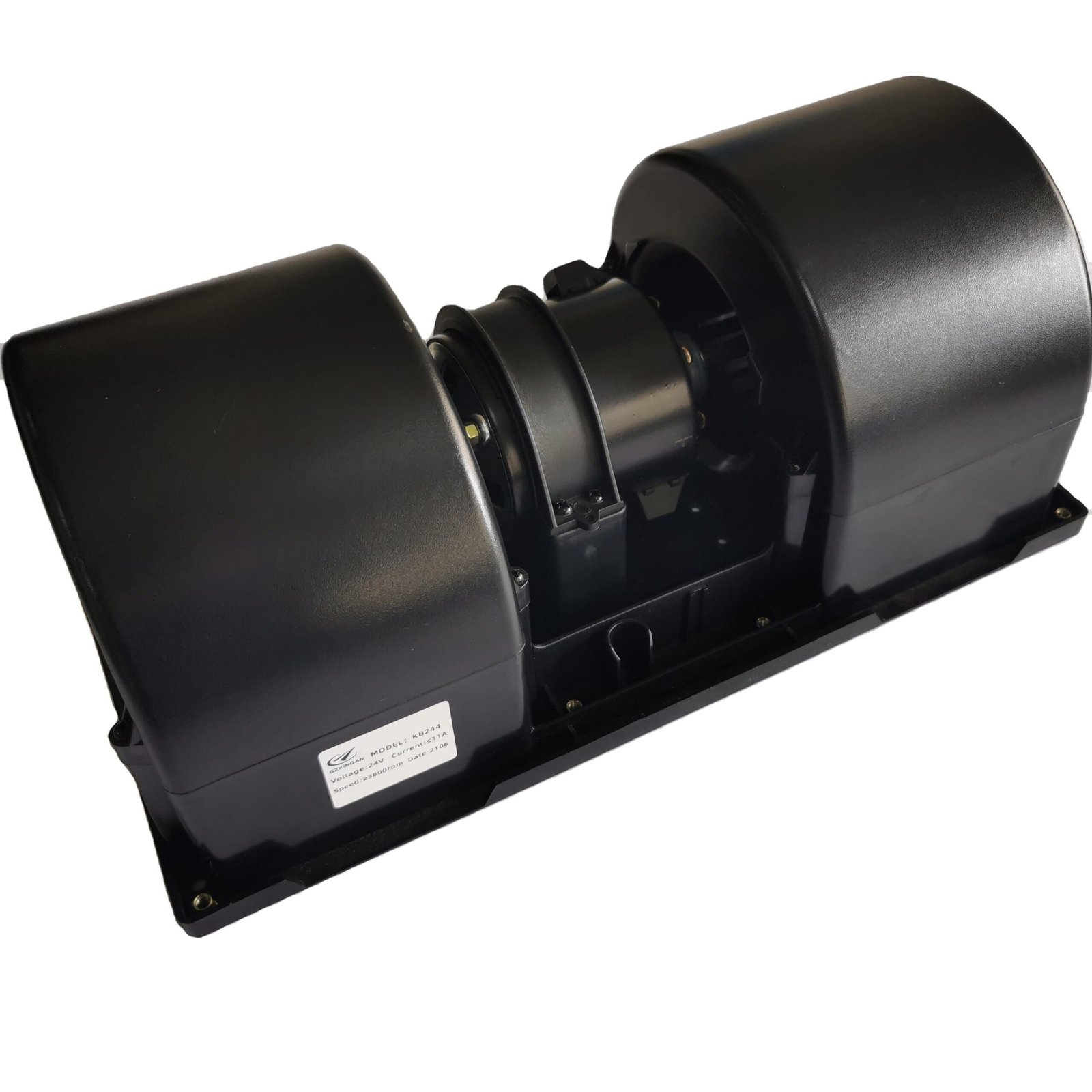

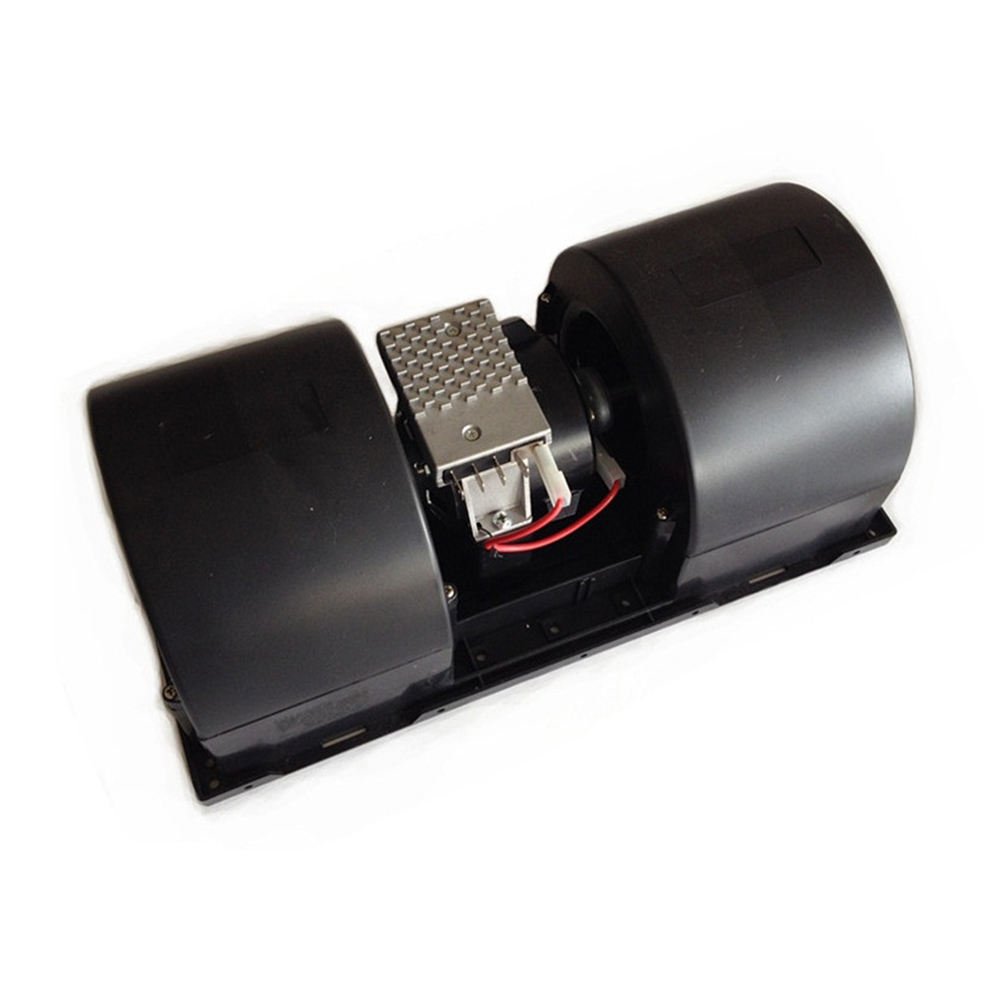

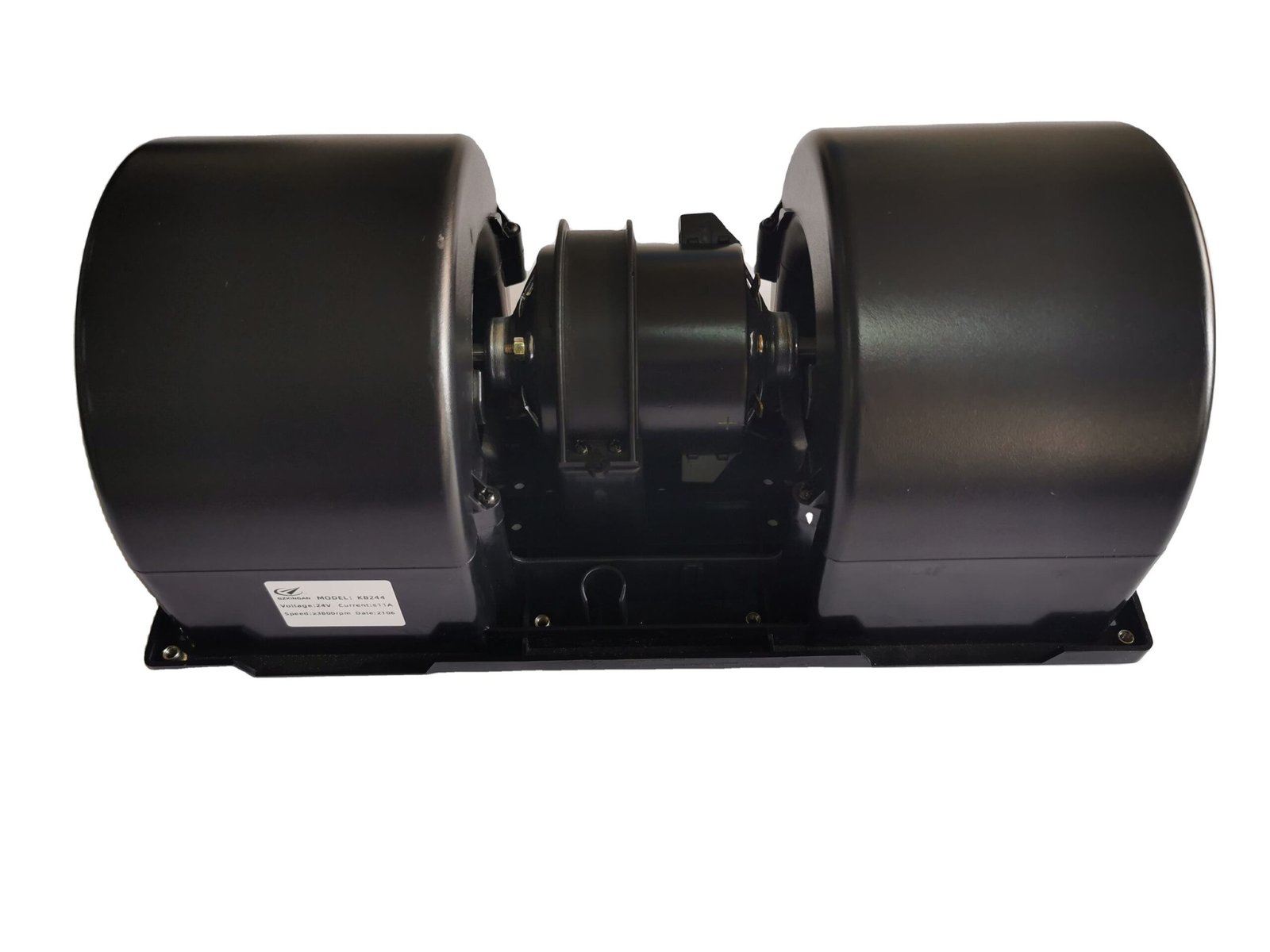

The 006-B50-22 evaporator blower is a dual-wheel centrifugal blower designed as an aftermarket replacement for bus and truck air-conditioning evaporator systems. It is available in 12V and 24V versions with single-speed or 3/4-speed control options.
Key Features
- Dual-wheel centrifugal design for vehicle AC evaporator systems
- 12V and 24V DC model options
- Rated airflow of 1000 m³/h
- Static pressure of 100 Pa
- Operating speed of at least 3800 rpm
- Single-speed and 3/4-speed configurations available
- Reference replacement for SPAL-type 006-B50-22 applications
- 13-month warranty

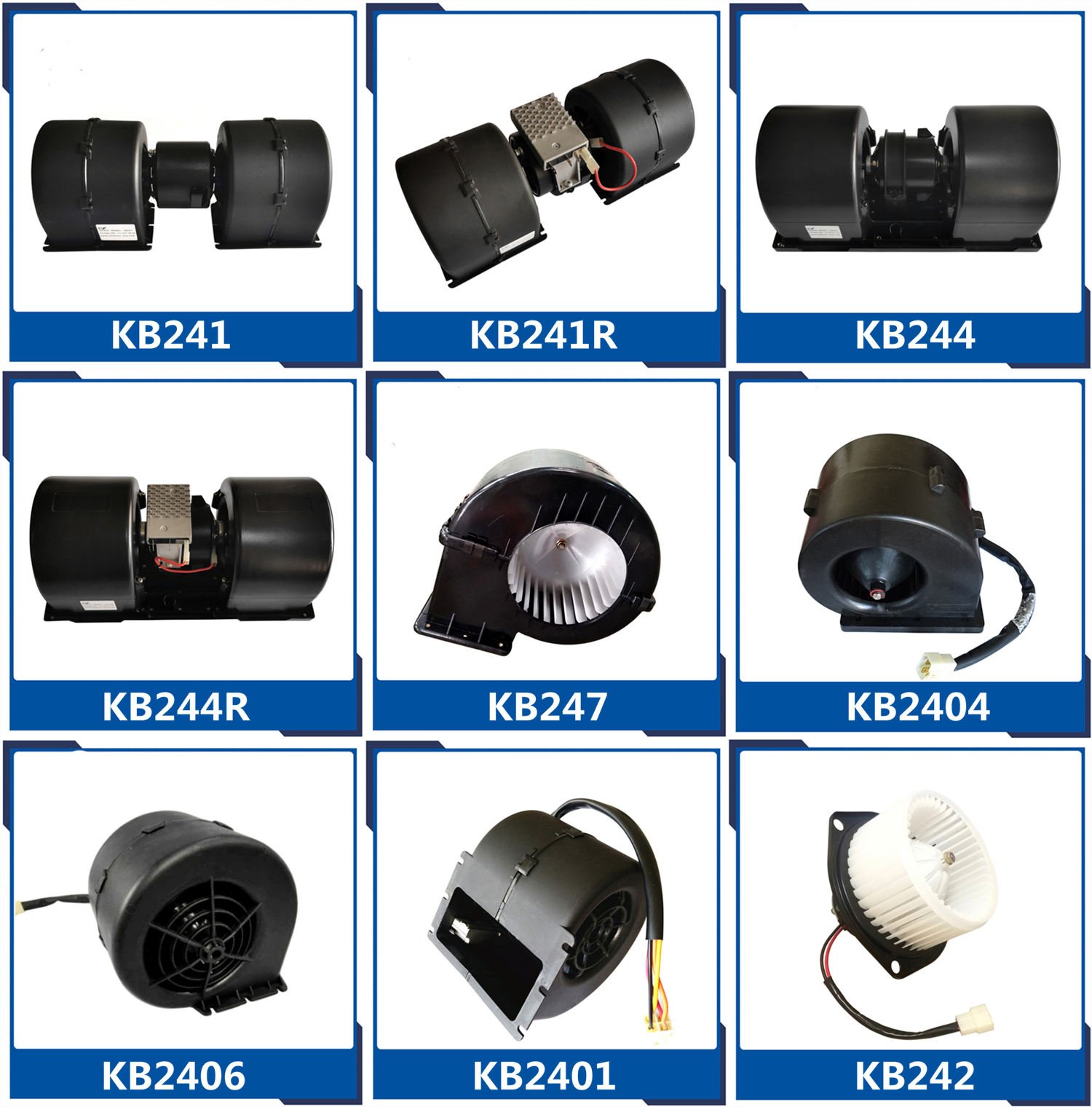

Model Options
| Model | Voltage | Speed Control | Current | Airflow |
|---|---|---|---|---|
| KB124 | 12V DC | Single Speed | ≤24 A | 1000 m³/h |
| KB124R | 12V DC | 3/4 Speed | ≤24 A | 1000 m³/h |
| KB244 | 24V DC | Single Speed | ≤11 A | 1000 m³/h |
| KB244R | 24V DC | 3/4 Speed | ≤11 A | 1000 m³/h |
Technical Specifications
- Product type: Dual-wheel centrifugal evaporator blower
- Rated voltage: 12V DC or 24V DC
- Airflow: 1000 m³/h
- Static pressure: 100 Pa
- Speed: ≥3800 rpm
- Noise: ≤74 dB(A)
- Dimensions: 352 × 140 × 168 mm
- Net weight: 2.3 kg
- Color: Black
The 12V models are tested at 13.5V DC, while the 24V models are tested at 27.0V DC.
Applications
Suitable for replacement and maintenance of evaporator blower assemblies in bus and truck air-conditioning systems.
Compatibility Notice
This is an aftermarket compatible replacement reference for SPAL-type 006-B50-22 applications. It is not represented as an original SPAL product. Please confirm voltage, speed-control configuration, dimensions and connection requirements before ordering.
Request a Quote
Contact us with your required voltage, speed configuration and order quantity to confirm the correct model, current price and delivery schedule.
