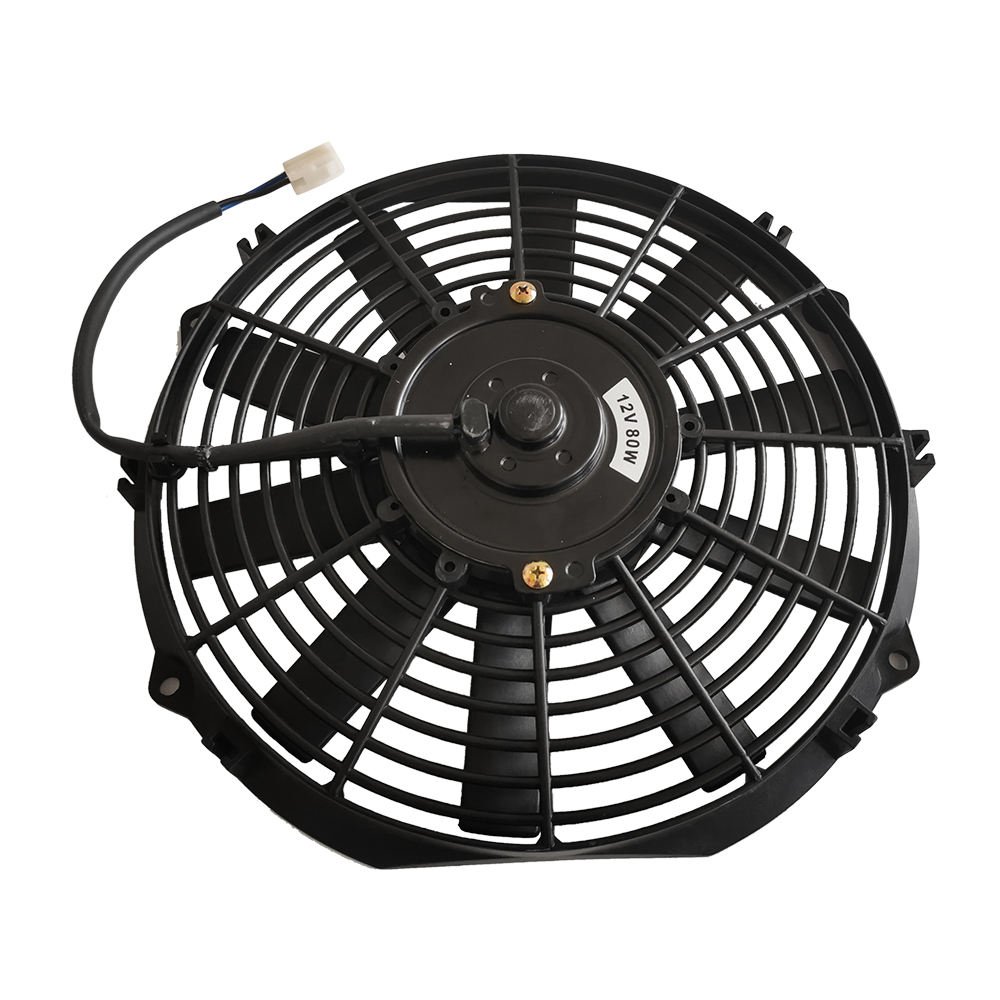

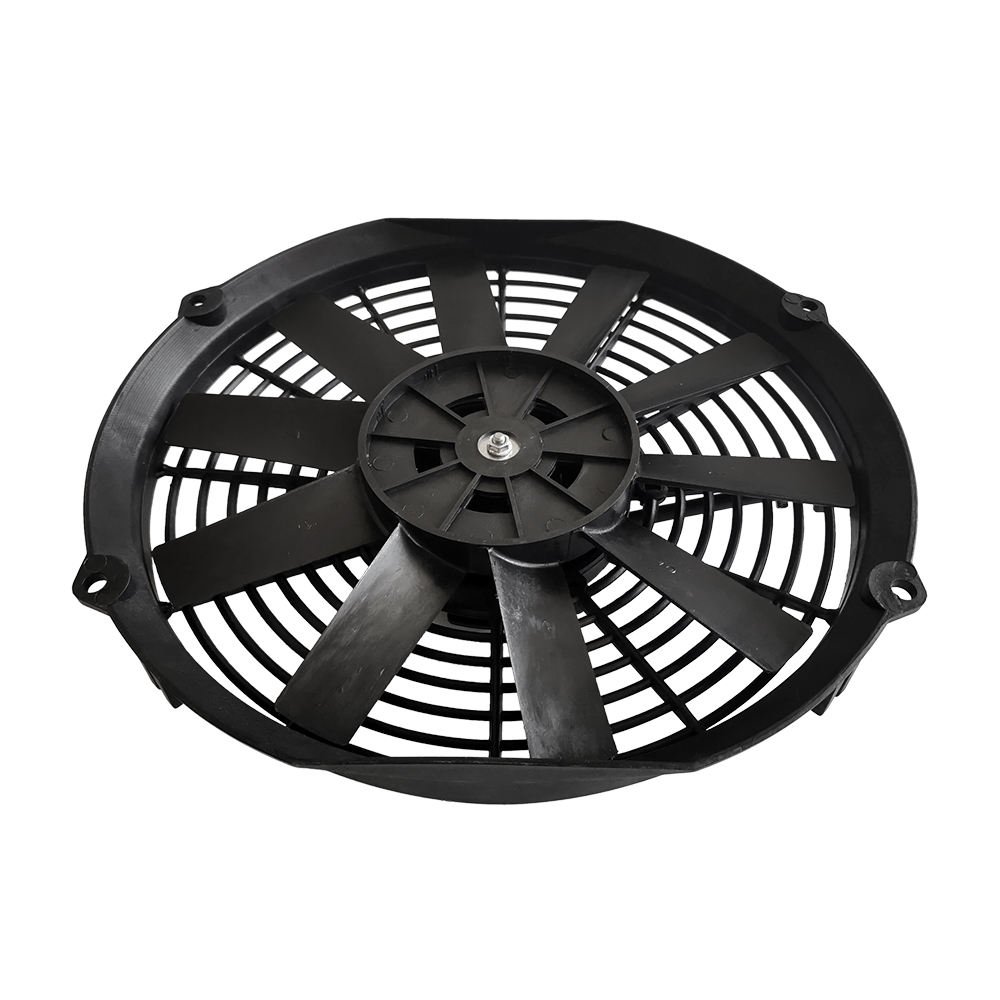

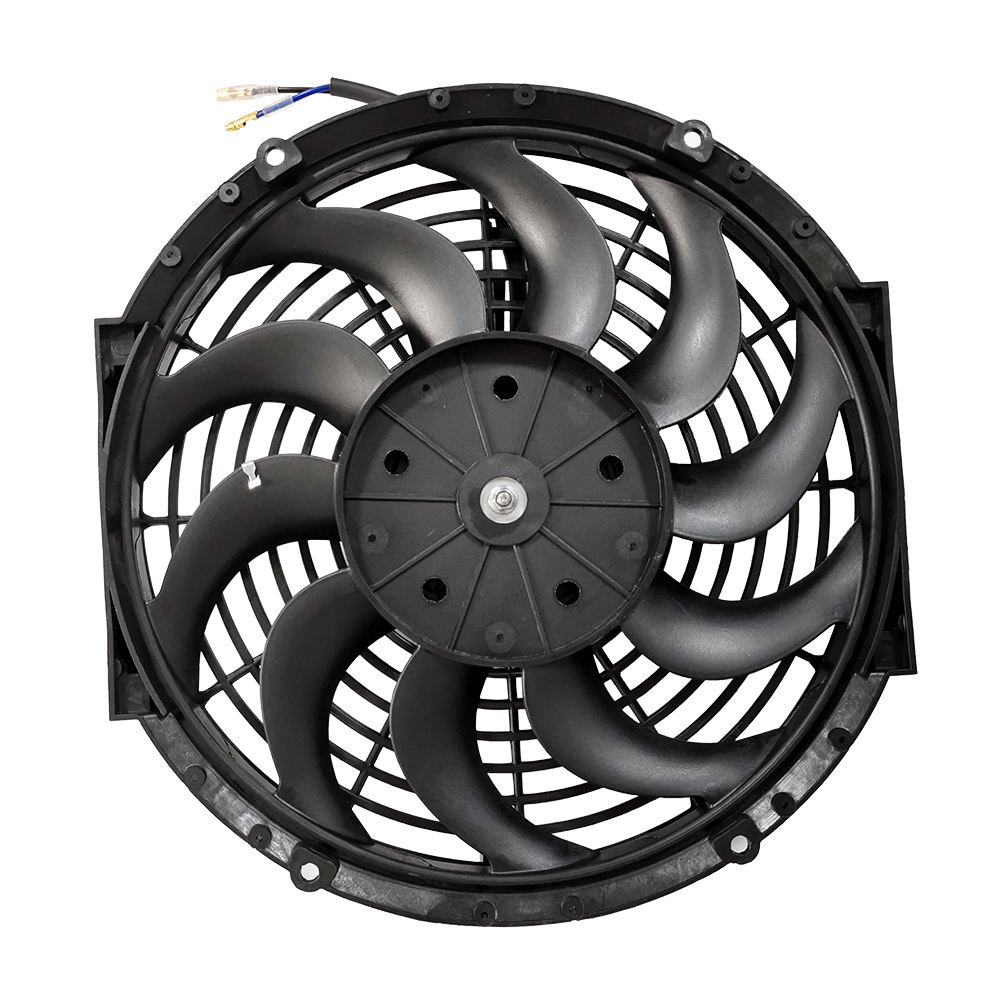

12 Inch 12V Universal Radiator Fan
The KEAO KF255-12 is a 12-inch 12V universal radiator fan designed for vehicle radiator and air-conditioning condenser cooling. Its compact axial-fan construction combines a 280 mm blade diameter, 60 mm axial depth and 2200 rpm operating speed.
This universal electric cooling fan is suitable for replacement and aftermarket cooling applications where the voltage, mounting dimensions, connector and airflow direction match the original installation.
Key Features
- 12-inch universal axial cooling fan
- 12V DC, 80W motor
- Load current of no more than 7A
- 2200 rpm ±10% operating speed
- 280 mm blade diameter
- 60 mm axial depth
- Suitable for radiator and AC condenser cooling
- Black fan assembly
- 13-month warranty
Technical Specifications
| Product Model | KF255-12 |
|---|---|

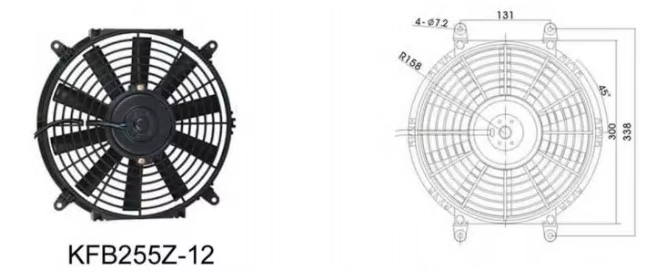

| Technical Reference | KFB255Z-12 |
| Fan Type | DC Axial Radiator and Condenser Fan |
| Nominal Size | 12 Inch |
| Rated Voltage | 12V DC |
| Motor Power | 80W |
| Load Current | ≤7A |
| Load Speed | 2200 rpm ±10% |
| Blade Diameter | 280 mm |
| Axial Depth | 60 mm |
| Color | Black |
| Condition | New |
| Warranty | 13 Months |
Typical Applications
- Vehicle radiator cooling
- Automotive AC condenser cooling
- Bus cooling systems
- Aftermarket cooling-system replacement
Frequently Asked Questions
Is this a 12V radiator fan?
Yes. This product page covers the confirmed 12V version with an 80W motor and a load current of no more than 7A.
Can it be used as an AC condenser fan?
Yes. The fan is intended for both radiator and air-conditioning condenser cooling applications when the installation specifications match.
Is this fan guaranteed to fit every vehicle?
No. “Universal” means it can be used in multiple applications, but the voltage, overall dimensions, mounting-hole positions, connector and airflow direction must be checked before ordering.
Is a 24V version available?
The 24V specification is not included on this product page. Please contact us to confirm 24V model availability.
Send us your required voltage, mounting dimensions and installation photos for compatibility confirmation and a quotation.
